Машина для производства соломы из копировальной бумаги
Описание продукта
\ n \ n technical parameter | |
Paper layer number |
2-3 layers |
Inner diameter of coil |
5-12mm |
Coil thickness |
0.3-1mm |
Coil speed |
0-45 M / min |
Head |
2 heads and single belt |
Fixed axis method |
flange |
Cutting system |
Numerical Control (Nc) Multi knive (standard 5 knives) |
Cutting length |
120-850mm |
Synchronous tracking and cutting |
Servo motor synchronous tracking cutting |
Glue way |
Double sided (customizable single side) |
Fixed length |
According to encoder |
Number of Operator |
1-2 |
speed control system |
frequency control |
Power Parameters |
380 volts/Three-phase/50Hz |
Efficiency (production of paper straws per hour) |
12000 roots / hour |
Machine size and weight | |
Mainframe size |
5600*1600*1750mm |
Area covered |
7000mm*6000mm*1800mm |
weight |
1200kgs |
drive system | |
Main motor |
3KW |
Main engine speed |
1400r/min |
Hub speed |
48r/min |
Hub output strength |
1000N m |
\ n \ n \ n Сертификация
\ n \ n \ n \ n \ n Всемирный обычай

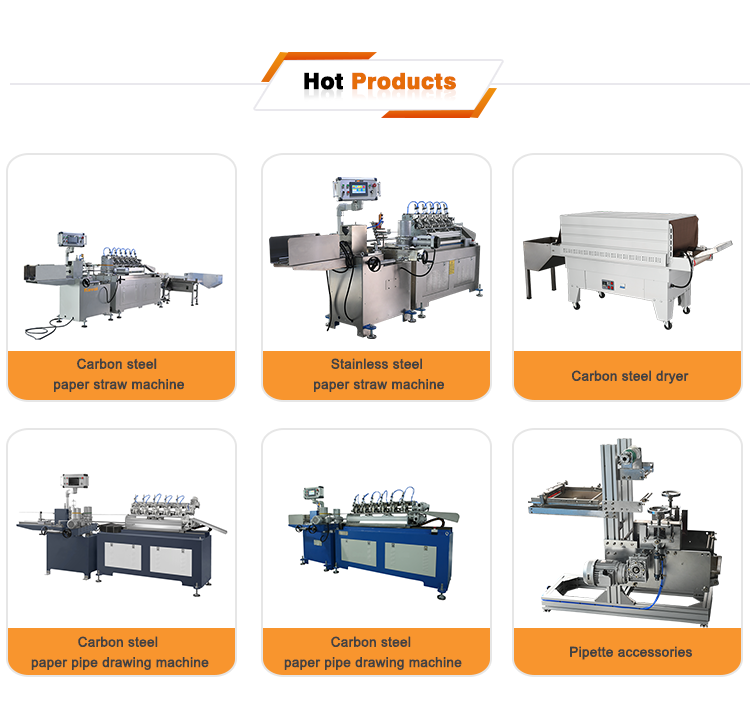

\ n Горячие продукты
